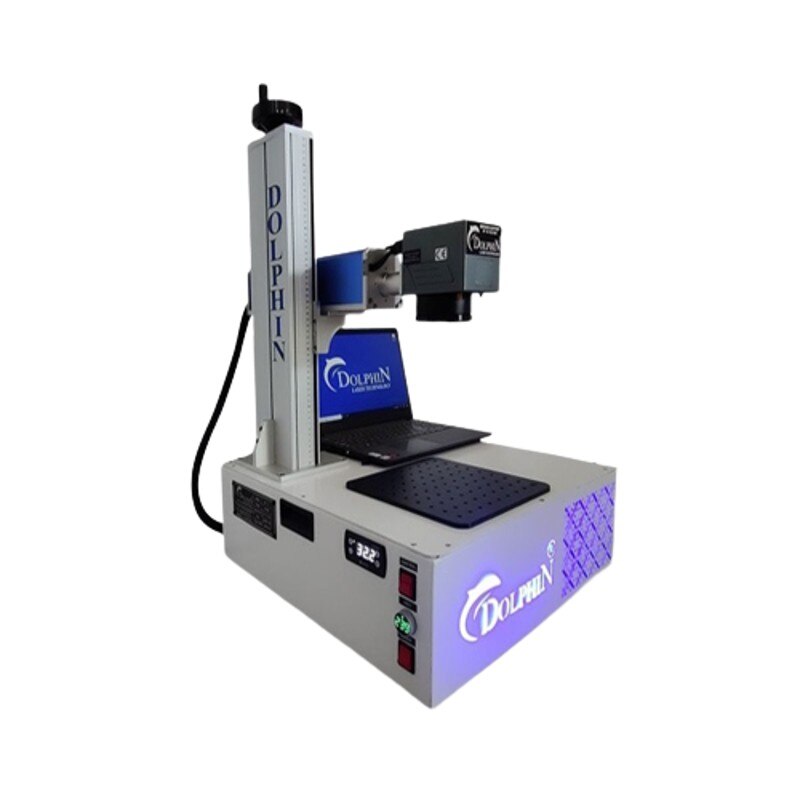

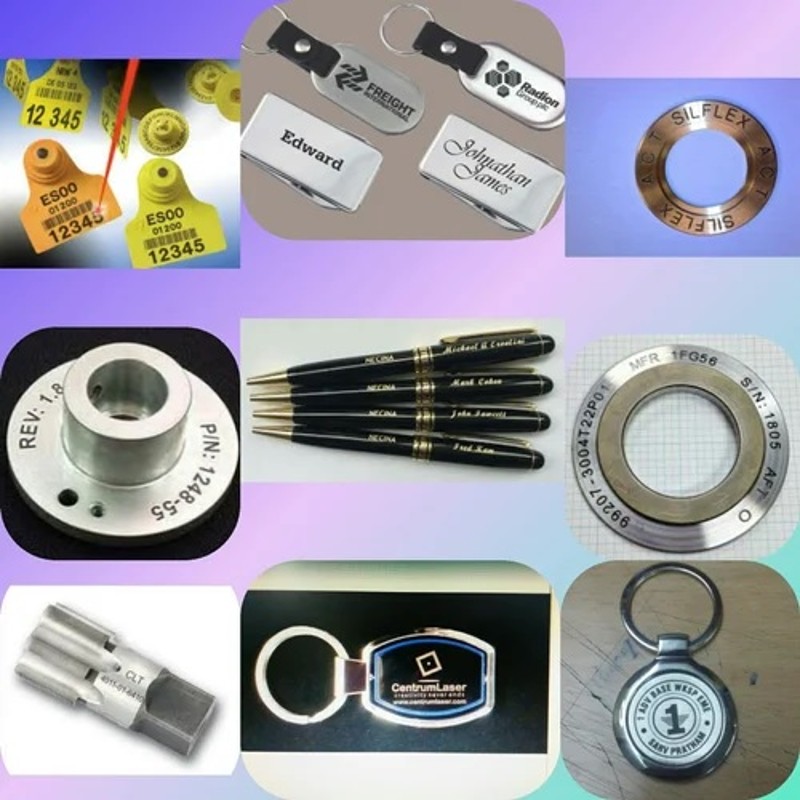

As a leading laser machine manufacturer in India, we offer high quality and user-friendly portable model laser marking machine all over India. The portable model laser marking machine gives you the freedom to place the machine at any place. The machine is lightweight and can also be integrated into the production line if required. This machine is most preferred for marking barcodes, serial numbers, QR code, brand name, designs on different materials like tools, gauges, utensils, bathroom fittings, etc. S. No Parameters Specifications 1. Laser Type Multi Diode Pump Pulsed Fiber Laser 2. Laser Power 20 watt 3. Power Down Start ≤ 4.5 Years 4. Output power stability Continue Work 4 Hours < 3 % 5. Central Wavelength Accuracy ± 3 nm 6. Optical Noise < 2.5 % RMS 7. Beam Quality M² 1.4 8. Single pulse energy (mJ) 1 to 30 KHz 9. Repetition Frequency Range 20-80 KHz 10. Min line width 0.03 mm 11. Marking depth 0.001 to 1.5 mm (depends on component hardness) 12. Min character height 0.35 mm 13. Laser Class Class IV 14. Wavelength 1064 ± 4 nm 15. Laser Life 1,00,000 + Hours 16. Polarization Random 17. Power Adjustment 0 to 100% 18. Cooling System Air cooled 19. Power supply 24V & 10 A 20. Max Power consumption 300 watt 21. Warranty / Guarantee 2 Year Warranty
